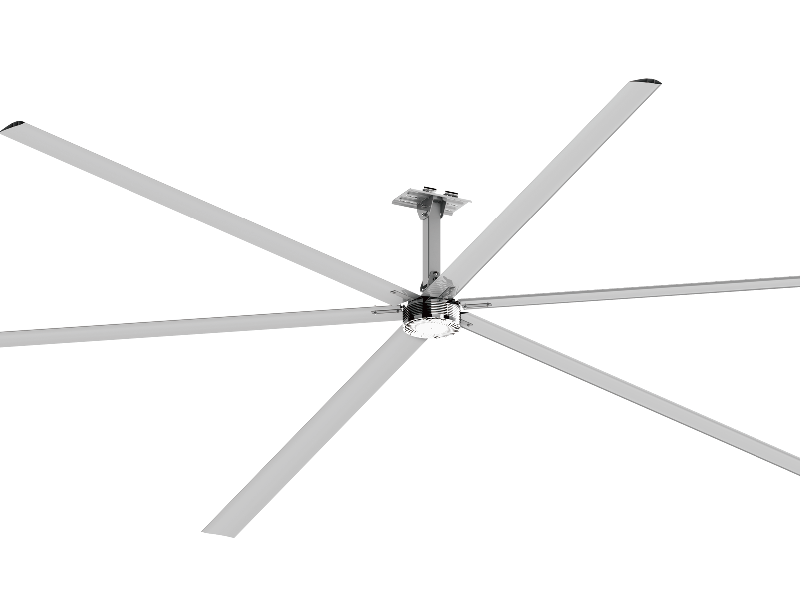

Xingtai permanent magnet direct drive industrial large fan

A large ceiling fan with a diameter of up to 7.3 meters; The super-large energy-saving fan, manufactured by applying the principles of aerodynamics and advanced technology, can drive a large amount of air with only 1.5Kw of power, generating a super-large area of natural breeze system, and achieving the dual functions of environmental ventilation and cooling. It can be regarded as a perfect solution for ventilation and cooling in large Spaces.

Technical advantage

The Xingtai permanent magnet direct drive industrial large fan adopts the DTFM3370 series dedicated permanent magnet direct drive synchronous motor as the actuator.

For the powerful "core" of the fan, it features ultra-low power, ultimate energy saving, ultra-quiet AC permanent magnet variable frequency motor, ultra-high motor efficiency (over 90%), coencoder design, built-in temperature sensor, pure copper motor, and fully automatic winding technology.

Product function

Personnel cooling: The natural gentle breeze generated by the Xingtai permanent magnet direct drive industrial large energy-saving fan blows on the human body, promoting the evaporation of sweat to take away heat and thus cooling the body, providing a cooling sensation. Usually, this cooling sensation can reach 5 to 8 degrees Celsius. The three-dimensional natural wind blown by Xingtai Industrial energy-saving fans is more comfortable because: on the one hand, it provides all-round three-dimensional blowing on the human body, maximizing the evaporation area of the human body. On the other hand, humans have accumulated a friendly experience of natural wind in nature. Once there is a natural gentle breeze with a change in wind speed, the human body will naturally feel extremely comfortable and cool.

Natural ventilation: In large and spacious enclosed Spaces, this ventilation and air exchange solution is greatly restricted. The roof negative pressure fan has no effect on the air in every corner and on the ground, which is precisely where people and equipment are located. By adopting the Xingtai Industrial energy-saving fan solution, the problem will be easily solved. Xingtai industrial energy-saving fans can effectively enhance the orderly movement of the air flow field within the space, promote the air mixing throughout the space, and in combination with roof fans, achieve the effect of improving air quality. Obtain a healthy, comfortable and safe working environment.

Dehumidification and moisture removal: Xingtai permanent magnet direct drive industrial large fans prevent air condensation, reduce bacteria and mold, significantly enhance air flow, thereby controlling air condensation on the ground or metal surfaces, making your working environment cleaner, drier, more comfortable and safer.

Product safety

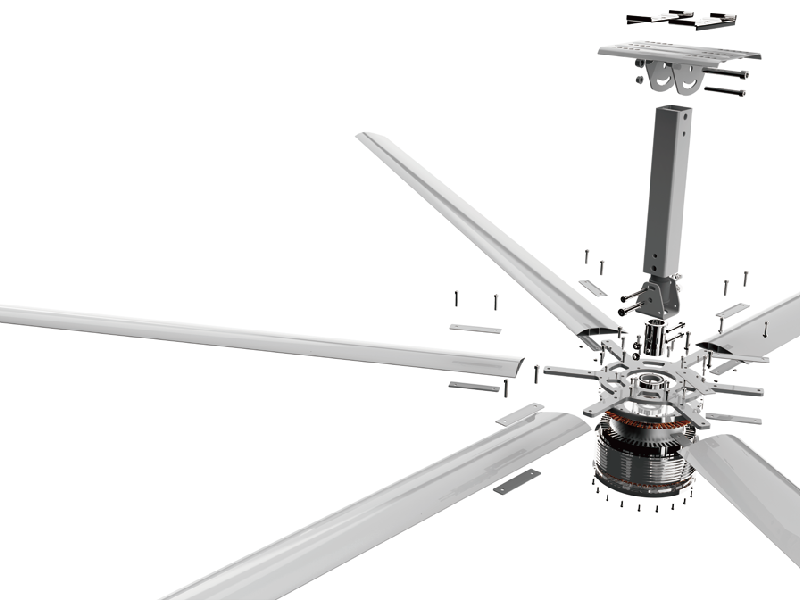

It adopts more than 10 safety protection measures (such as safety ropes, safety rings, anti-drop shaft sleeve technology, I-shaped fan blade connection, up to 12.9 grade fasteners, anti-loosening fasteners, fan blade reinforcement design, reinforced plug-in design, control system overload protection, etc.). All components are made of the world's top well-known brands and technologies, all for the purpose of achieving the best safety.

Safety measures

Safety ring: In case of an accident, the safety ring serves a protective function, preventing any component from slipping off.

Type I safety clamp for fan blades: Reconnect all the fan blades and the chassis together to form an integral structure.

Fasteners: All fasteners are made of high-strength industrial bolts, with an actual stress of more than 10 times.

Steel wire traction: The stress strength of each A-wire cable can reach 1000KG, and double protection is set at each connection point.

The servo control system automatically alarms and stops running in case of an accident.
